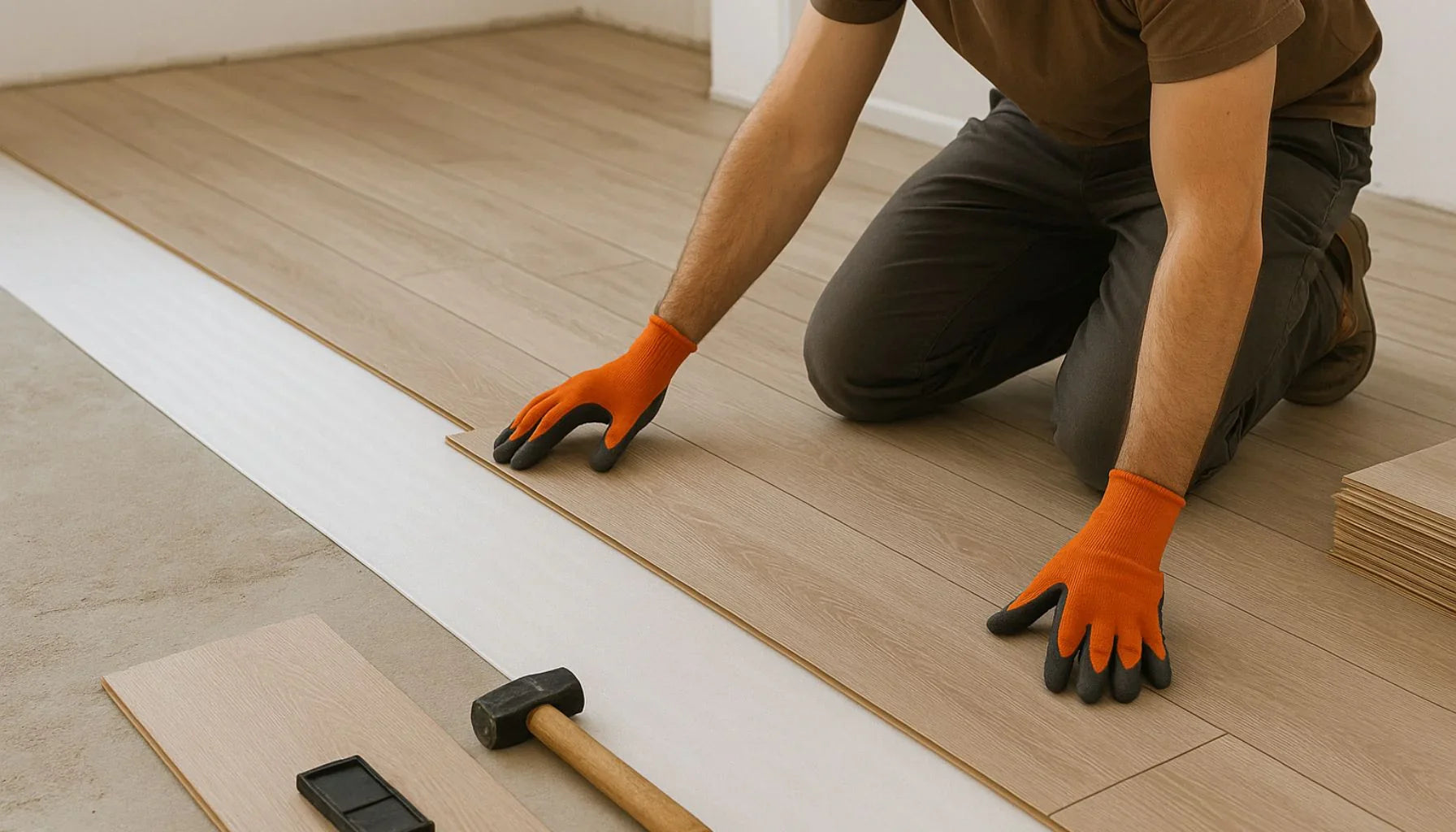

The Comprehensive Guide to Professional Flooring Installation: Materials, Methods, and Mastery

The selection of a flooring material is a foundational decision in any construction or renovation project, with long-term implications for aesthetics, durability, maintenance, and value. A professional understanding requires moving beyond surface-level appearances to a deeper analysis of each material's composition, performance characteristics, and appropriate applications. This section provides a comparative analysis of the primary categories of hard-surface flooring: wood, resilient vinyl, and tile, establishing the critical knowledge base required for proper specification and installation.

Wood flooring remains a benchmark for quality and timeless appeal, valued for its natural beauty and warmth. The category is broadly divided into two distinct product types: solid hardwood and engineered hardwood. While they may appear identical after installation, their internal construction dictates their performance, stability, and suitable uses.

Solid hardwood flooring is, as its name implies, milled from a single, solid piece of timber. Each plank is a monolithic slice of a specific wood species, such as oak, maple, or walnut. This construction is its defining feature, granting it exceptional longevity and the ability to be sanded and refinished multiple times over its lifespan, which can span decades or even centuries with proper care. It is often considered the "gold standard" in flooring for its authenticity and its proven ability to add significant and lasting resale value to a property.

However, the very nature of its solid wood construction is also its primary limitation. Wood is a hygroscopic material, meaning it naturally absorbs and releases moisture from the surrounding air to reach equilibrium with its environment. This process causes the wood to expand in humid conditions and contract in dry conditions. This dimensional instability makes solid hardwood highly susceptible to warping, cupping (where the edges of a plank rise higher than its center), and gapping between boards when exposed to significant shifts in temperature and humidity. Consequently, solid hardwood is not recommended for installation in high-moisture environments like bathrooms or in below-grade applications such as basements, where moisture from concrete slabs can cause catastrophic failure.

Engineered hardwood is a composite product designed specifically to counteract the inherent instability of solid wood. It is constructed in multiple layers, featuring a top "wear layer" of genuine hardwood veneer bonded to a core of cross-stacked plies. This core is typically made from materials like plywood, high-density fiberboard (HDF), or softwood. The key to its performance lies in the cross-ply construction: each layer in the core is oriented with its grain running perpendicular to the adjacent layers. This configuration effectively restricts the wood's natural tendency to expand and contract, making the plank dimensionally stable.

The quality and longevity of an engineered hardwood floor are critically dependent on the thickness of its real wood veneer. This wear layer dictates the floor's durability and how many times, if any, it can be professionally sanded and refinished. A high-quality engineered plank may feature a wear layer of 4mm to 6mm, which can be sanded two to three times, potentially offering a service life of over 50 years. In contrast, lower-cost options may have a veneer as thin as 2mm, which might only allow for a single light sanding, or even less, significantly shortening its functional lifespan.

The decision between solid and engineered hardwood involves a fundamental trade-off between the absolute longevity and traditional value of solid wood and the practical performance and versatility of its engineered counterpart. Engineered wood was not created as a "cheaper" alternative, but as a technical solution to the primary weakness of solid wood: its dimensional instability in the face of moisture.

• Stability and Application: The cross-ply construction of engineered hardwood makes it substantially more resistant to moisture and temperature fluctuations than solid wood. This enhanced stability is its single greatest advantage, allowing for successful installation in environments where solid wood would be inappropriate. This includes below-grade basements, installations directly over concrete slabs, and use with radiant heating systems. Solid wood is generally restricted to on-grade or above-grade installations over a wood subfloor.
• Durability and Lifespan: With proper maintenance, solid hardwood can last for the life of a building, as its thickness allows for numerous refinishing cycles. The lifespan of engineered hardwood is directly tied to its wear layer. A high-quality plank with a thick veneer can be refinished and may last for 50 years or more, but once that veneer is worn through, the entire floor must be replaced. Vinyl cannot be refinished at all.
• Cost: While material costs can be comparable, with some high-end engineered products exceeding the cost of common solid hardwoods, engineered flooring can sometimes offer overall project savings. Its installation versatility—including floating and glue-down methods—can be less labor-intensive than the mandatory nail-down or staple-down installation required for solid wood over a wood subfloor.
• Aesthetics: Both flooring types offer the authentic look and feel of real wood, because the surface layer of an engineered plank is, in fact, real wood. Engineered construction, however, opens up greater design possibilities. Its stability allows for the production of much wider and longer planks, which are highly desirable in modern design but would be prone to warping in a solid format. It also enables the use of softer, more exotic wood species for the veneer that would be too unstable for use as solid flooring.

The expert approach to guiding a flooring choice begins not with budget or color, but with the installation environment. The location of the project—be it a humid climate, a basement, or a room with radiant heat—is the first critical filter. The answer to this question determines whether solid hardwood is a viable option at all, or if the superior stability of an engineered product is a prerequisite for a successful, long-lasting installation.

Resilient flooring, dominated by vinyl-based products, has undergone a technological revolution. Once relegated to budget applications, modern vinyl flooring now offers a compelling combination of high performance, sophisticated aesthetics, and value. The evolution from basic sheet vinyl to luxury vinyl plank (LVP) and tile (LVT), and most recently to rigid core products like Stone Plastic Composite (SPC), represents a market shift toward durable, waterproof flooring that can convincingly mimic natural materials.

Luxury vinyl is a synthetic flooring product composed of multiple layers, primarily of polyvinyl chloride (PVC). It is manufactured in two main formats: LVP, which comes in long planks designed to replicate the look of wood flooring, and LVT, which comes in square or rectangular tiles to mimic stone or ceramic. A key characteristic of this category is its high water resistance, with most modern products being marketed as 100% waterproof.

A critical distinction within the LVP/LVT category is the type of core, which dictates the product's rigidity, durability, and feel underfoot.

• WPC (Wood Plastic Composite): An earlier form of rigid core, WPC blends wood pulp and plastic composites. This composition results in a floor that feels softer and quieter underfoot and offers better sound absorption. However, it is less dense and less resistant to heavy impacts compared to its successor, SPC.
• SPC (Stone Plastic Composite): Representing the current state-of-the-art in vinyl flooring technology, SPC features a core made from a composite of natural limestone powder, PVC, and stabilizers. This stone-based core makes SPC flooring incredibly dense, rigid, and exceptionally stable. It provides superior resistance to dents and impacts from heavy objects and is less susceptible to expansion and contraction with temperature changes, making it a significant technological advancement over older vinyl types.

Sheet vinyl is a flexible flooring material that comes in large rolls, typically 6 or 12 feet wide, often manufactured with a fiberglass-cushion backing. Its primary advantage is the ability to be installed over large areas with few or no seams. This monolithic surface makes it one of the most effective waterproof flooring solutions available, as there are minimal joints through which water can seep.

Sheet vinyl is generally the most budget-friendly option in the vinyl category. However, its flexibility and softer composition make it less scratch-resistant than rigid core LVP/LVT. Furthermore, it demands a perfectly smooth subfloor, as any imperfections, bumps, or dips in the substrate can "telegraph" through the material and become visible on the surface.

The choice between wood and vinyl flooring hinges on a balance of authenticity, performance requirements, and budget.

• Authenticity: Solid and engineered hardwood offer unparalleled authenticity because their visible surface is genuine wood, with its unique grain, texture, and natural variations. Vinyl products like LVP and SPC utilize a high-definition photographic layer protected by a clear wear layer to mimic the appearance of wood. While modern digital printing technology has become remarkably realistic, the patterns will eventually repeat over a large area, and the surface lacks the unique tactile warmth and character of real wood.
• Water Resistance: This is the definitive advantage of vinyl flooring. SPC and LVP products are typically 100% waterproof, making them the superior choice for high-moisture areas such as bathrooms, laundry rooms, and basements—locations where most wood flooring is explicitly not recommended.
• Durability and Maintenance: Both categories are considered durable for residential use. However, vinyl, particularly SPC, generally offers superior resistance to scratches, scuffs, and dents due to its robust synthetic wear layer. This makes it a highly practical choice for households with pets and children. The key long-term difference is refinishing capability. Engineered and solid wood can be sanded and recoated to remove surface damage and restore their appearance, granting them a potentially much longer functional lifespan. Vinyl flooring cannot be refinished; once its wear layer is compromised or the style is outdated, the entire floor must be replaced.
• Cost: Vinyl flooring is typically more affordable than both solid and engineered hardwood, in terms of both the material itself and the installation labor. The ease of click-lock installation for many LVP products makes it a popular choice for DIY projects, further reducing overall cost.

The progression of vinyl flooring technology illustrates a clear market demand for high-performance solutions. When a user asks for "the most durable waterproof flooring," an expert response must go beyond a simple "vinyl" recommendation. A more nuanced and accurate answer would specify, "For maximum durability and water resistance in the resilient flooring category, Stone Plastic Composite (SPC) flooring is the leading option. Its limestone-infused core provides superior rigidity, dimensional stability, and impact resistance compared to older flexible LVP or WPC-core products." This demonstrates an understanding of the product hierarchy and the technological advancements that define the modern flooring landscape.

Tile represents one of the oldest and most durable flooring materials. Its primary forms, ceramic and porcelain, are staples in areas requiring extreme durability and water resistance.

While often grouped together, ceramic and porcelain tiles have important compositional differences that affect their performance. Both are made from natural clay that is fired in a kiln, but the materials and process for porcelain are more refined.

• Composition: Porcelain tile is made from a finer, denser clay and is fired at significantly higher temperatures and for a longer duration than standard ceramic tile.
• Performance: This intense manufacturing process makes porcelain denser, harder, and far less porous than ceramic tile. Its low water absorption rate (typically less than 0.5%) makes it frost-resistant and suitable for exterior applications. Ceramic tile is more porous and thus more susceptible to water absorption and staining, making it best suited for interior walls and low-traffic floors. Due to its density, porcelain is more durable and better able to withstand heavy foot traffic and impacts.

• Durability and Water Resistance: Tile is exceptionally durable. When properly installed with appropriate grout and sealant, a tile floor creates a completely impervious and waterproof surface, making it the unequivocal choice for the wettest environments, such as shower enclosures and bathroom floors. It is highly resistant to scratches and stains.
• Feel and Warmth: The primary drawback of tile is its feel underfoot. It is a cold and unyielding surface, which can be uncomfortable, especially in colder climates. This is a significant disadvantage when compared to the natural warmth of wood or the relative softness of vinyl. While radiant heating systems can be installed beneath tile to mitigate the coldness, this adds significant cost and complexity to the installation process.
• Installation and Repair: Tile installation is a specialized trade that is considerably more labor-intensive, messy, and less DIY-friendly than most other flooring types. It requires a unique set of tools (wet saws, notched trowels), materials (thin-set mortar, grout), and skills (layout, cutting, grouting). Repairing a single cracked tile is also a more involved process than replacing a damaged plank of LVP, as it requires carefully chipping out the old tile and grout without damaging adjacent tiles.

An underlayment is a thin layer of material installed between the structural subfloor and the new finished flooring. It is often misunderstood as an optional accessory, but in professional installations, it is a critical and often non-negotiable component of a complete flooring system. The function of an underlayment is to mitigate the known weaknesses of a given flooring and subfloor combination, addressing issues of moisture, sound, or structural movement.

Types and Functions

• Moisture Barriers: Typically a 6-mil polyethylene sheet, a moisture barrier (or vapor retarder) is essential when installing flooring over a concrete subfloor. Concrete is porous and constantly emits a low level of moisture vapor. This barrier prevents that moisture from wicking up and being trapped beneath the flooring, where it can cause wood to warp, adhesives to fail, and mold to grow.
• Acoustic Underlayments: Designed to reduce sound transmission, these underlayments are particularly important in multi-story buildings. They are made from materials like high-density foam, cork, or recycled rubber, which absorb and dampen sound energy. They are most effective at reducing impact noise—such as footsteps or dropped items—from being heard on the floor below.
• Uncoupling Membranes: These are specialized products, such as the Schluter-DITRA system, used exclusively under tile installations. A tile floor is rigid and brittle, while its subfloor (especially a wood subfloor) can flex and move with changes in temperature and humidity. An uncoupling membrane creates a separating layer that allows the subfloor to move independently without transferring that stress to the tile, which would otherwise cause cracks in the tile and grout lines. Some advanced systems, like DITRA-HEAT, also integrate electric floor warming cables directly into the membrane, providing heat and uncoupling in a single layer.³⁵

The choice of underlayment is therefore not arbitrary; it is a prescriptive solution to a predictable problem. A flooring installation is a system comprising the subfloor, the underlayment (if required), and the finished floor. For example, installing any wood-based product over a concrete slab without a moisture barrier is a direct violation of industry standards and a recipe for failure. Likewise, installing tile over a wood subfloor without an uncoupling membrane invites cracks and grout failure. An expert recommendation for an underlayment can only be made after first identifying the type of finished flooring and the type of subfloor, as the underlayment's purpose is to bridge the gap and solve the inherent challenges of that specific combination.

The long-term performance and durability of any flooring installation are determined not during the laying of the planks or tiles, but in the meticulous preparation phase that precedes it. Industry data and professional experience consistently show that the vast majority of flooring failures—from buckling wood to cracking tile—are rooted in inadequate or skipped pre-installation steps. This section details the critical requirements for job site and subfloor preparation, material acclimation, and layout planning, adhering to the rigorous standards set forth by organizations like the National Wood Flooring Association (NWFA).

A professional flooring installer must act as the final quality control gatekeeper for the job site itself. The environment must be stable and suitable before any flooring material is even delivered.

• The "Last Job" Principle: Wood flooring, in particular, should be one of the final trades to work on a construction project. This is to ensure that all "wet work"—such as the pouring of concrete, installation and mudding of drywall, plastering, and painting—has been fully completed and, critically, has had adequate time to dry thoroughly. Introducing wood flooring into a high-humidity environment caused by curing concrete or paint will lead to the wood absorbing excessive moisture, resulting in expansion and buckling after installation.
• Environmental Integrity: The building must be completely enclosed. All exterior doors and windows must be installed and fully operational to protect the interior from weather. Furthermore, the site's grading must be complete, with functional gutters and downspouts in place to direct all surface water away from the building's foundation. This prevents moisture from wicking into the foundation and crawl space, which can create a perpetually high-humidity environment.
• HVAC and Climate Control: The permanent heating, ventilation, and air conditioning (HVAC) system must be operational. It should be run for a minimum of five days prior to flooring delivery and throughout the acclimation and installation process.²⁹ The goal is to stabilize the interior environment to "normal living conditions," which are generally defined by the industry as a temperature range of 60-80°F (15-27°C) and a relative humidity range of 30-50%. Using temporary heat sources like propane heaters is unacceptable, as they introduce large amounts of moisture into the air.
• Crawl Space Requirements: For homes with a crawl space, specific conditions must be met to prevent moisture from migrating up into the subfloor. The crawl space must be dry, with a minimum clearance of 18 inches from the ground to the underside of the joists. Crucially, the entire earth floor of the crawl space must be covered with a minimum 6-mil black polyethylene vapor retarder, with all seams lapped and taped. Proper perimeter venting must also be in place to ensure air circulation.

The subfloor is the foundation upon which the entire flooring system rests. Its condition is paramount. All subfloors, whether wood or concrete, must be clean, structurally sound, and, most importantly, flat. The industry standard for flatness tolerance is typically no more than a 3/16-inch deviation in a 10-foot radius or a 1/8-inch deviation in a 6-foot radius. This must be checked with a long straightedge.

The preparation process is a systematic elimination of potential failure points. One cannot properly check for flatness on a dirty floor, nor can one get an accurate moisture reading on a contaminated surface. Each step is a dependency for the next. Skipping a step does not save time; it knowingly introduces a variable that is a common cause of costly callbacks and flooring failure.

Preparing Wood Subfloors

• Structural Integrity: The subfloor must be inspected for any water-damaged, soft, or delaminated panels, which must be replaced. Any loose panels or squeaky boards must be screwed down securely into the floor joists to eliminate movement.
• Surface Preparation: High spots should be sanded down, and any low spots or depressions must be filled with a suitable cementitious leveling or patching compound to meet flatness tolerances. All staples, old adhesive, and debris must be removed.
• Thickness and Type: The subfloor must meet minimum thickness requirements based on the spacing of the floor joists (e.g., a minimum of 5/8-inch plywood for joists spaced 16 inches on center). It is critical to note that particle board is not considered a structural subfloor and is unacceptable for nail-down or glue-down flooring applications.

Preparing Concrete Subfloors

• Curing and Cleanliness: A new concrete slab must be allowed to fully cure for a minimum of 30 to 60 days before any flooring is installed. The surface must be completely free of any contaminants that could interfere with adhesive bonding, such as paint, oil, wax, curing compounds, or old adhesive residue. A simple test is to place a few drops of water on the slab; if the water beads up instead of soaking in, a sealer or contaminant is present and must be removed.
• Flatness and Surface Profile: High spots must be ground down, and low spots or cracks must be filled with a Portland cement-based leveling compound. For glue-down applications, the slab may need to be mechanically abraded (scarified or shot-blasted) to achieve the correct Concrete Surface Profile (CSP) required by the adhesive manufacturer for a proper mechanical bond.

Moisture Testing Protocols (The Core of Failure Prevention)

Moisture is the primary enemy of most flooring installations. Proper moisture testing is not optional; it is a mandatory step for professional work, and the results must be documented.

• Wood Subfloors: A calibrated, pin-type moisture meter is the required tool. The installer must test at least 20 locations per 1,000 square feet of flooring. The average moisture content (MC) of the wood subfloor should generally not exceed 12-14%. More importantly, the subfloor's MC must be within a specific tolerance of the hardwood flooring's MC at the time of installation. Per NWFA guidelines, this tolerance is typically within 4 percentage points for narrow strip flooring (less than 3 inches wide) and within 2 percentage points for wider plank flooring.
• Concrete Slabs: Testing concrete is more complex, and multiple methods are required to get a complete picture of the slab's condition.
• In-Situ Relative Humidity Test (ASTM F2170): This is the most reliable method for determining the moisture condition within the slab. It involves drilling holes into the concrete and placing electronic probes to measure the relative humidity deep inside the slab. Most flooring and adhesive manufacturers require an RH reading of 80-85% or lower before installation can proceed.
• Calcium Chloride Test (ASTM F1869): This test measures the Moisture Vapor Emission Rate (MVER) from the surface of the slab. A small dish of anhydrous calcium chloride is weighed, placed on the concrete under a sealed plastic dome for 60-72 hours, and then re-weighed. The weight gain indicates how much moisture was emitted. A reading above 3 to 5 lbs per 1,000 sq. ft. per 24 hours is typically considered too high and requires a vapor retarder or other moisture mitigation system.

Acclimation is one of the most misunderstood and improperly executed steps in flooring installation. It is not about letting the material "sit" for a set number of days; it is a scientific process of conditioning the flooring to the specific environment in which it will be installed.

The Science of Acclimation

Wood is a hygroscopic material, meaning its moisture content is in a constant state of flux, trying to equalize with the ambient temperature and relative humidity of its surroundings. The point at which the wood is no longer gaining or losing moisture is called its Equilibrium Moisture Content (EMC). The purpose of acclimation is to allow the wood flooring's moisture content to reach the target EMC of the job site

before it is fastened in place. If flooring is installed with a moisture content that is too high for the environment, it will shrink after installation, creating gaps. If it is installed when it is too dry, it will expand and buckle.

NWFA-Recommended Procedure for Wood

The professional standard for acclimation is a data-driven process, not a time-based one.

1. Establish Baseline: Upon delivery to a stable, climate-controlled job site, the installer must use a moisture meter to measure the MC of the subfloor and a representative sample of the new flooring (e.g., 40 boards per 1,000 square feet).
2. Determine Target EMC: The target EMC for the flooring is calculated based on the job site's average, long-term temperature and relative humidity. Often, the measured MC of the properly prepared wood subfloor is used as the direct target for the new flooring.
3. Condition the Material: The flooring boxes should be opened and the planks cross-stacked with spacers (known as "stickers") between each layer. This allows for full air circulation around all surfaces of every board, which is essential for uniform conditioning.
4. Monitor and Install: The installer must continue to take moisture readings of the flooring periodically. The flooring is only considered fully acclimated and ready for installation when its MC has reached the target EMC and is within the required tolerance of the subfloor's MC (e.g., 2-4%). This process may take three days or it may take two weeks; the data, not the calendar, dictates the timeline.

Acclimation for Other Materials

While not hygroscopic like wood, other flooring materials also benefit from acclimation. Vinyl planks should be stored unopened in the installation room for at least 24-48 hours. This allows the material to adjust to the ambient temperature. Installing cold, brittle vinyl can lead to difficulty with cutting and engaging the locking mechanisms, while installing overly warm, expanded vinyl can lead to contraction and gapping after it cools.

A successful installation looks intentional. This is achieved through careful layout and planning before the first plank is ever permanently installed.

• Establishing Working Lines: The first step is to find the center of the room by measuring the walls and snapping perpendicular chalk lines. These center lines serve as the primary reference points to ensure the entire layout remains square and is balanced from wall to wall. All other layout measurements are taken from these initial lines.
• Planning Plank Direction: The direction in which planks are laid has both structural and aesthetic implications.
• Structural: The strongest and most traditional installation method is to lay the planks perpendicular to the direction of the floor joists. This orientation distributes the load across multiple joists and significantly reduces the risk of the floor sagging or developing squeaks.
• Aesthetic: Laying planks parallel to the longest wall of a room can create a visual effect of making the space appear larger and more elongated. Another common technique is to run the planks parallel to the primary source of natural light (e.g., flowing away from a large window or glass door). This orientation helps to hide the seams between planks, as shadows are not cast across the joints.
• Balancing the Layout: A hallmark of an amateur installation is ending with a very narrow, awkward-looking sliver of a plank against the final wall. To avoid this, a professional plans ahead. The width of the room is measured and divided by the width of a single plank. If the calculation shows that the last row will be less than half the width of a plank, the layout should be adjusted. The proper technique is to rip-cut the first row of planks to a narrower width. This ensures that both the starting row and the final row are of a similar, substantial width, creating a visually balanced and professional-looking installation.
• Racking the Floor: "Racking" is the process of laying out several rows of flooring loose on the subfloor before fastening them. This serves two critical purposes. First, it allows the installer to pull planks from multiple different boxes at once, which is essential for blending the natural color, shade, and grain variations inherent in wood products. Second, it allows for the deliberate staggering of end joints. End joints in adjacent rows should be offset by a minimum of 6 to 8 inches. This random staggering is crucial for both structural integrity and aesthetics. Installers must consciously avoid creating predictable patterns like "H-joints" (where end joints align every other row) or "stair-steps," as these create weak points in the floor and are visually jarring.

The installation method for a given floor is not an arbitrary choice; it is a prescribed system dictated by the flooring product's construction and the nature of the subfloor. A mismatch between the product, subfloor, and installation method is a primary cause of flooring failure. For example, attempting to float a solid hardwood floor designed for nail-down installation will lead to excessive movement and gapping. Conversely, nailing down a thin engineered plank designed to float can damage the product and restrict its necessary movement.

The following table provides a high-level overview of appropriate installation methods for common flooring and subfloor combinations. Subsequent sections will detail the specific procedures for each.

The installation of wood flooring requires precision and adherence to established techniques to account for the material's natural properties.

Nail-Down/Staple-Down Installation Guide (Solid & Engineered)

This is the traditional method for installing wood flooring over a wooden subfloor.

• Applicability: This method is required for all solid hardwood flooring and is an option for thicker engineered wood products (typically 1/2-inch or greater) being installed over a suitable wood subfloor, such as plywood or OSB.
• Preparation: After the subfloor is confirmed to be clean, flat, and dry, a layer of 15lb asphalt felt or red rosin paper should be laid over the entire subfloor, with seams overlapped by 2-4 inches. This layer acts as a vapor retarder and helps reduce potential squeaking between the subfloor and the hardwood.
• First Row Installation: The first row is the most critical for establishing a straight line for the rest of the floor.
1. Position the first row of planks along the established chalk line, with the tongue of the planks facing out into the room.
2. Maintain a 3/4-inch expansion gap between the first row and the starting wall by using spacers.
3. Because a pneumatic flooring nailer cannot be operated close to the wall, the first one or two rows must be secured by hand. Predrill pilot holes through the face of the planks (face-nailing), about 1 inch from the wall-side edge, to prevent the wood from splitting.
4. Drive finishing nails into the pilot holes, then use a nail set to countersink the nail heads slightly below the wood surface. These holes will later be filled with color-matched wood putty for concealment.
• Subsequent Rows: Once there is sufficient clearance from the wall (usually after two or three rows), the installation can proceed with a pneumatic flooring nailer or stapler.

1. Engage the tongue and groove of the next plank and use a tapping block and mallet to ensure a tight fit.
2. Position the nailer's shoe on the tongue of the plank. A firm strike with the mallet will drive a fastener (a cleat nail or staple) at a 45-degree angle through the tongue and into the subfloor—a technique known as blind-nailing, as the fastener is hidden by the next row.
3. Fasteners should be spaced every 8 to 10 inches along the length of the plank and within 1 to 3 inches of each end. A minimum of two fasteners per plank is required.

• Last Rows: As the installation approaches the far wall, the space will again become too tight for the pneumatic nailer. The final rows must be face-nailed by hand, just like the first row. The very last plank will likely need to be rip-cut to width, remembering to account for the 3/4-inch expansion gap, and carefully pried into place before being secured.
• Fastener Choice: The choice between cleats and staples depends on the flooring. Solid hardwood is typically installed with barbed L-shaped cleats. Engineered flooring is often installed with narrow-crown staples, though shorter cleats can also be used. The length of the fastener is critical; it must be long enough to securely penetrate the subfloor but not so long as to go completely through it. Always follow the flooring manufacturer's specific recommendations.

Glue-Down Installation Guide (Primarily Engineered)

This method provides a solid feel underfoot and is common for installing engineered wood over concrete slabs.

• Applicability: Primarily used for engineered hardwood over either concrete or wood subfloors.
• Adhesive and Trowel Selection: This is a critical decision. The installer must use an adhesive specifically formulated for wood flooring and approved by the flooring manufacturer. The size of the trowel's notches (e.g., square notch, V-notch) is also specified by the adhesive manufacturer and is crucial for applying the correct volume of adhesive. Using the wrong trowel can lead to adhesive failure.
• Installation Process:
1. Begin by spreading adhesive over a small, workable area of the subfloor (e.g., a few feet wide) along the starting chalk line.
2. Lay the first row of planks into the wet adhesive, pressing them firmly into place.
3. Engage subsequent rows using a tapping block and mallet to ensure tight joints.
4. It is imperative to immediately clean any adhesive that squeezes up onto the finished surface of the planks. Use the specific solvent or cleaning wipes recommended by the adhesive manufacturer, as cured urethane adhesive is extremely difficult to remove without damaging the floor's finish.
5. As work progresses, blue painter's tape can be used across the seams to hold the planks tightly together while the adhesive sets.
• Curing Time: The floor must not be subjected to foot traffic for at least 24 hours to allow the adhesive to fully cure and form a permanent bond.

Floating Installation Guide (Engineered Only)

This is the most DIY-friendly method, as the floor is not fastened to the subfloor.

• Applicability: This method is only for engineered wood products specifically designed with a click-lock or tongue-and-groove (T&G) profile suitable for floating. It can be used over any type of structurally sound subfloor.
• Underlayment: A foam or cork underlayment pad is almost always required for a floating installation. This pad provides cushioning, sound dampening, and, if it includes an integrated film, a moisture barrier. The underlayment is rolled out, with the seams butted together (not overlapped) and sealed with tape.
• Installation Process:
1. Start in a corner of the room, maintaining the required expansion gap (typically 1/4-inch to 5/16-inch for floating floors) along all walls and vertical obstructions using spacers.
2. For click-lock systems, the planks are assembled without adhesive. The tongue of one plank is inserted into the groove of the adjacent plank at a low angle, and then pressed down to "click" and lock the joint.
3. For traditional T&G floating systems, a small bead of specialized wood glue is applied along the inside of the groove on each plank before the pieces are joined together. The glue bonds the planks to each other, not to the subfloor.
4. Work across the room, using a tapping block and a pull bar (for the last plank in a row) to ensure all seams are tight and fully engaged. Stagger end joints randomly by at least 6 inches to ensure the stability of the floating floor panel.

Vinyl flooring installation methods vary significantly based on the product's construction, from simple click-lock systems to more demanding glue-down and loose-lay techniques.

Click-Lock LVP/LVT/SPC Installation Guide (Floating)

This is the most common and user-friendly method for installing modern rigid core vinyl planks.

• Process: The procedure is very similar to a floating engineered wood installation. First, the planks must be acclimated to the room's temperature for 24-48 hours to ensure dimensional stability. A 1/4-inch expansion gap must be maintained around the entire perimeter of the room using spacers. Installation begins in a corner, typically working from left to right. The tongue of a plank is inserted into the groove of the previously laid plank at a low angle, and then lowered to snap the lock together. End joints between planks in adjacent rows should be staggered by at least 6-8 inches for strength and a natural appearance. A tapping block and a rubber mallet should be used gently to close any small gaps, taking care not to strike too hard, which can damage the locking mechanism.

Glue-Down LVP/LVT Installation Guide

This method is used for "dry back" vinyl planks that do not have a locking system and is favored in commercial settings for its superior stability.

• Process: An exceptionally smooth, clean, and dry subfloor is non-negotiable for a glue-down installation, as any imperfections will telegraph through the flooring. Unlike a floating floor, the layout typically begins from center working lines established in the middle of the room. The manufacturer-specified adhesive is spread with the correct notched trowel over a small, controllable section of the subfloor. Many vinyl adhesives require a specific "open time" or "flash time" to allow them to tack up before planks are placed; this is a critical step that must be followed per the manufacturer's instructions. Planks are then carefully placed into the tacky adhesive. They should be placed directly down and not slid into position, as sliding can displace the glue and create a weak bond. Immediately after installation, the entire area must be rolled with a heavy 75-100 lb. floor roller to ensure a firm, uniform bond and press out any trapped air bubbles.

Loose-Lay Vinyl Plank Installation Guide

This method applies to a niche category of heavy, flexible vinyl planks with a high-friction backing.

• Applicability: Loose-lay vinyl is a specialized product that relies on its own weight and a friction-grip backing to stay in place without adhesives or locking mechanisms.
• Process: Proper acclimation for at least 48 hours in a climate-controlled room is essential for the planks to relax and lay flat.⁷⁹ The subfloor must be impeccably flat and clean. The planks are installed by butting them tightly against each other and against all perimeter walls and obstructions. For larger rooms, typically those exceeding 20 feet in any direction, a "grid stick" installation method is required. This involves applying a 4-inch wide band of pressure-sensitive adhesive around the entire perimeter of the room and in a grid pattern across the field (e.g., every 13 feet). The planks are then laid into this adhesive grid, which prevents the floor from shifting in large, open areas.

Sheet Vinyl Installation Guide

This method creates a highly water-resistant surface due to the lack of seams.

• Process: Sheet vinyl can be installed using either a full-spread adhesive, where the entire subfloor is coated, or a perimeter-bond method, where adhesive is only applied around the edges of the room and at seams. For rooms with irregular shapes, doorways, or other obstacles, creating a full-size template of the room using builder's paper is the most accurate method for cutting the vinyl sheet to the correct size and shape before bringing it into the room. Once cut, the sheet is laid in position. For a full-spread installation, half of the sheet is folded back, adhesive is applied to the exposed subfloor and allowed to tack up, and then the vinyl is carefully rolled back into place. This process is repeated for the other half. After the sheet is laid into the adhesive, it must be rolled with a 100-lb. roller, working from the center outwards, to ensure a strong bond and remove any air pockets. If any seams are required between two pieces of sheet vinyl, they must be sealed with a compatible seam sealer product to make the joint waterproof.

Tile installation is a wet trade that requires a fundamentally different approach from wood or vinyl. It relies on building a stable, multi-layered system using mortars and grouts.

Ceramic and Porcelain Tile Installation Guide (Thinset Method)

• Subfloor Preparation: A rigid and stable subfloor is absolutely paramount to prevent the tile and grout from cracking. When installing over a wood subfloor, an intermediate layer of cement backer board or a modern uncoupling membrane is required. This layer provides a stable, cementitious surface for the tile to bond to and, in the case of an uncoupling membrane, isolates the tile from subfloor movement.
• Layout: A complete dry layout of the tiles on the floor is a mandatory first step. Starting from the central reference lines, the installer plans the entire layout to ensure a balanced appearance and to anticipate where cuts will be needed. This prevents ending up with awkward, thin slivers of tile along a prominent wall.
• Mortar Application: Thin-set mortar should be mixed with water or a latex additive to a smooth, mayonnaise-like consistency. Application is a two-step process. First, use the flat side of the trowel to apply a thin, flat "scratch coat" or "key-in" coat to the substrate. Then, apply more mortar and use the notched side of the trowel, held at a 45-degree angle, to comb the mortar into uniform ridges, all running in the same direction. The size of the trowel's notches is determined by the size of the tile; larger tiles require larger notches to ensure adequate mortar coverage.
• Setting the Tile: Each tile is placed gently into the mortar and pressed down with a slight twisting motion to collapse the mortar ridges and ensure full contact. Plastic tile spacers are used between tiles to maintain consistent and uniform grout lines. A level should be used frequently across multiple tiles to check for flatness and prevent "lippage," where one tile edge is higher than its neighbor.
• Cutting Tile: A diamond-blade wet saw is the professional tool of choice for making clean, precise cuts, especially on hard porcelain tiles or for complex shapes like L-cuts or curves. For simple, straight cuts on softer ceramic tile, a manual snap cutter can be used.²⁶
• Grouting and Sealing: After the thin-set mortar has cured for at least 24 hours, the tile spacers can be removed and the grouting process can begin. Grout is mixed and applied with a rubber grout float, which is used to press the grout firmly into the joints at a 45-degree angle. After the grout has set for 15-30 minutes, a large, damp sponge is used to carefully wipe the excess grout off the surface of the tiles. This process is repeated until the tiles are clean. After the grout has fully cured (which can take anywhere from several days to a few weeks depending on the type), a penetrating grout sealer should be applied to the grout lines to protect them from stains and moisture absorption.

Installation with Uncoupling and Heating Membranes

Modern tile installations frequently incorporate advanced membranes that combine multiple functions. Systems like Schluter-DITRA-HEAT provide a comprehensive solution. The installation process involves first adhering the DITRA membrane to the subfloor with thin-set mortar. The electric floor warming cables are then pressed into the membrane's geometric stud structure. Finally, the tile is installed directly on top of the membrane and cables using another layer of thin-set mortar. This integrated system provides not only a stable surface for the tile but also the benefits of uncoupling, waterproofing, vapor management, and radiant heat in a single, streamlined application.

Acoustic performance is an increasingly important consideration in flooring, particularly in multi-family dwellings, commercial spaces, and multi-story homes. Effective soundproofing is not merely about adding a single layer of material; it is about designing a floor-ceiling assembly as a system to mitigate the transmission of both impact and airborne noise. The entire assembly acts like a drumhead; an impact on the floor surface creates vibrations that travel through the structure and radiate as sound in the space below. The most effective soundproofing strategies work by "decoupling" the finished floor from the building's structure, thereby breaking the path of vibration.

Two primary metrics are used to quantify the acoustic performance of a flooring assembly. It is crucial to understand that these ratings apply to the entire assembly—from the finished floor down to the ceiling below—not just to a single product.

• IIC (Impact Insulation Class): This rating measures how well an assembly resists the transmission of impact or structure-borne noise. This includes sounds like footsteps, dropped objects, or furniture being moved. The rating is determined by a standardized test (ASTM E989) that measures sound levels in a lower room while a tapping machine impacts the floor above. A higher IIC number indicates better performance. While building codes may only require an IIC of 50, this level is often considered insufficient for residential comfort. An IIC rating of 60 provides moderate reduction, and a rating of 65 or higher is generally considered to provide good acoustic privacy.
• STC (Sound Transmission Class): This rating measures how well an assembly reduces airborne noise, such as human voices, television, or music. A higher STC rating indicates better sound insulation. Like IIC, an STC of 50 is a common minimum standard, but higher values are desirable for privacy in residential and commercial settings.
• Delta IIC (ΔIIC): While IIC and STC rate the full assembly, the Delta IIC rating is a value specific to an acoustic underlayment product itself. It represents the amount of IIC improvement the underlayment adds to an assembly when tested in a controlled laboratory setting. For example, a ΔIIC of 22 means the underlayment improved the IIC rating of the base assembly by 22 points. This metric is useful for directly comparing the impact sound reduction performance of different underlayment materials.

The core of most floor soundproofing strategies is the use of a resilient acoustic underlayment.

• Acoustic Underlayments: These materials are placed between the subfloor and the finished flooring to act as a resilient, shock-absorbing layer.
• Rubber: Recycled rubber underlayment is one of the most effective materials for reducing impact noise due to its high density and resilience. It is available in various thicknesses, typically from 2mm to 12mm, and is compatible with most flooring types, including hardwood, tile, and vinyl.
• Cork: Cork is a natural and sustainable material that provides both acoustic and thermal insulation. Its unique cellular structure, which is up to 50% air, is effective at dampening sound vibrations. A 3mm layer of cork underlayment can provide a sound reduction of up to 10 decibels. It is commonly used under hardwood and tile.
• Foam: Closed-cell foam underlayments, made from materials like polyolefin or polyethylene, are a common and cost-effective option, particularly for floating laminate and vinyl plank floors. They provide good cushioning and moderate sound reduction.
• Felt: Dense, fibrous felt underlayments also offer effective acoustic properties and are compatible with a range of flooring types.
• Decoupling: This is the guiding principle of effective soundproofing. Simply adding mass is not enough; the path of vibration must be broken. Acoustic underlayments achieve this by creating a resilient layer that decouples the hard surface floor from the rigid subfloor. This principle must also be applied at the room's perimeter. If the finished flooring or underlayment makes hard contact with the walls, impact vibrations can bypass the underlayment and travel down the wall studs into the structure below. This is known as "flanking noise" and can significantly compromise the performance of an otherwise well-designed system.

Simply using an acoustic underlayment is only part of the solution. Proper installation is critical to achieving the desired sound reduction and realizing the material's rated performance.

• Underlayment Installation: The subfloor must first be prepared to be clean, flat, and dry. The underlayment is then rolled out over the subfloor. The seams between rolls should be butted together tightly without overlapping, and then sealed with a suitable tape to create a continuous layer.⁹⁷ Depending on the system, the underlayment may be loose-laid (for floating floors) or fully adhered to the subfloor with a recommended adhesive (for glue-down flooring like tile or hardwood).
• Perimeter Isolation: This is a non-negotiable step for effective soundproofing. The entire flooring assembly must be isolated from the surrounding walls and any other vertical protrusions like columns or pipes. This is achieved by installing a perimeter isolation strip first, or by leaving a 1/8-inch to 1/4-inch gap between the underlayment/flooring and all vertical surfaces. This gap must then be filled with a flexible, non-hardening acoustical sealant or caulk. The baseboard is then installed so it does not make hard contact with the floor, preserving the decoupled "float" of the entire floor system. This crucial step prevents impact vibrations from flanking around the underlayment and negating its acoustic benefits.

An expert understands that a soundproofing system is only as strong as its weakest link. Providing instructions for an acoustic mat without also detailing the mandatory requirement for perimeter isolation would be an incomplete and ultimately ineffective recommendation. The entire floor must be installed as an isolated unit, separated from the main building structure on all sides, to truly mitigate structure-borne noise.

Beyond standard flat-lay installations, a flooring professional's expertise is truly demonstrated in handling complex applications like stairs, transitions between different materials, and intricate patterns. These scenarios require a higher level of skill, meticulous planning, and a deep understanding of both structural and aesthetic principles.

Stairs are high-traffic, high-impact areas that demand a robust and safe flooring installation. Using standard flooring planks on stairs is often an improper application that can lead to durability and safety issues.

• Preparation: The process begins with completely stripping the stairs down to their structural frame (the stringers). All old carpet, padding, tack strips, and staples must be removed. The underlying structure must be inspected for any loose or squeaky components, which should be secured with screws. A critical preparation step for many retrofits is the removal of the existing "bullnose" or rounded front edge of the subfloor tread. This is typically done with a jigsaw to create a flush, 90-degree edge that can accept the new hardwood tread and nosing.
• Materials: For wood installations, the use of solid, one-piece stair treads is the industry best practice. These are thicker and more durable than standard flooring planks and are milled to include an integrated nosing. Using thin flooring planks with a separate, tacked-on nosing piece creates a weak point that is prone to splitting and failure under the focused stress of foot traffic on a stair edge. Many flooring manufacturers offer matching solid treads, risers, and nosing for their flooring collections. For vinyl installations, specialized one-piece stair covers that combine the tread and nosing are available and offer a seamless, durable solution.
• Installation Process: Installation on stairs always proceeds from the bottom step upwards to avoid working over freshly installed components. The typical sequence is to install the riser (the vertical back piece) first, followed by the tread (the horizontal stepping surface). Both components should be secured using a combination of high-strength construction adhesive and finishing nails for maximum stability. The new tread should be installed with a consistent overhang of about 1 to 1.5 inches beyond the face of the riser. Pilot holes should be drilled for all nails to prevent the hardwood from splitting.
• Code Compliance: Stair construction is governed by strict building codes for safety. Installers must be aware of local requirements for maximum riser height (e.g., 7 ¾ inches), minimum tread depth (e.g., 10 inches), and allowable variation between steps (e.g., no more than ⅜ inch). The installation of new, thicker flooring material can alter these dimensions and potentially create a code violation and a tripping hazard if not properly planned for.

Transitions are required wherever one type of flooring meets another, such as in a doorway, or where flooring terminates against a different surface, like a fireplace hearth or sliding glass door. They serve the dual purpose of covering the necessary expansion gaps and managing any height differences between the two surfaces.

• Managing Height Differences:
• Same Height: When two floors of the same thickness meet (e.g., hardwood to hardwood), a T-molding is used. This trim piece has a 'T' shape in profile; the vertical leg fits into the expansion gap between the floors, and the top cap overlaps both edges.¹¹⁰
• Uneven Height: When there is a height difference, a reducer strip is used. This molding creates a smooth, gentle slope from the higher floor down to the lower floor, preventing a trip hazard. Thresholds or saddle transitions serve a similar purpose but are typically wider and more substantial, often used in doorways.
• Flush Transitions: The most professional and seamless method for transitioning between floors of different inherent thicknesses (like 3/4-inch hardwood and 1/4-inch tile) is to address the height difference at the subfloor level. Before installation, an additional layer of underlayment (e.g., plywood) is installed under the thinner flooring material to build it up, so that the finished surfaces of both floors will be flush. This eliminates the need for a surface-level transition strip and creates a high-end, continuous look.
• Aesthetic Transitions: Beyond simple strips, transitions can be treated as a design element.
• Feature Borders: A deliberate border can be created between two flooring fields. This could be a "header" of wood planks running perpendicular to the main floor, or a decorative border made of a contrasting wood species or a row of mosaic tiles. This technique clearly defines the two spaces while creating an intentional, custom look.
• Interwoven Patterns: For a truly unique and high-end design, the two flooring materials can be blended together without a hard line. This involves cutting the materials into geometric shapes, such as hexagons or a sawtooth pattern, and staggering them to create a gradual, interwoven transition from one material to the other. This is a highly skilled, labor-intensive process that results in a dramatic visual effect.
• Metal Profiles: Thin metal profiles, such as those made by Schluter, offer a clean, contemporary alternative to traditional wood moldings. Available in materials like aluminum or stainless steel, they provide durable edge protection for tile and a sleek, low-profile transition to adjacent flooring.

Intricate patterns like herringbone elevate a wood floor from a simple surface to a major architectural feature. However, their installation is significantly more complex than a standard straight-lay and requires absolute precision.

• Layout is Paramount: A successful herringbone installation is entirely dependent on a flawless layout. The process must begin by finding the exact center of the room and snapping perfectly perpendicular reference lines. The entire pattern is built outward from this central axis. Any error in the initial lines will be magnified as the pattern expands, resulting in skewed lines and difficult cuts.
• The Starting Jig: Because the herringbone pattern starts with planks meeting at a 90-degree angle in the center of the room, there is no straight edge to work from. To solve this, a temporary nailing blank or jig—typically a perfect 90-degree triangle cut from 3/4-inch plywood—is screwed to the subfloor precisely on the centerline. This jig provides the stable, square starting point against which the first two "point" planks are installed.
• Material Preparation: Standard tongue-and-groove (T&G) flooring planks cannot be used for a herringbone pattern as-is. For the pattern to interlock correctly, each plank needs a groove on one long side and both short ends. Therefore, the tongue on the short end of each standard plank must be cut off, and a new groove must be routed in its place using a specialized flooring router bit. This is a time-consuming but essential preparation step.
• Installation Process: The pattern is meticulously built outward from the central jig, with the corners of each plank precisely aligned with the established working lines. It is a slow, piece-by-piece process that requires constant checking for alignment. Due to the high number of small pieces and seams, a full-spread glue-down installation, often assisted with blind-nailing, is strongly recommended to ensure maximum stability and prevent movement.
• Creating the Border: Once the main "field" of the herringbone pattern is complete, the edges will be jagged and uneven. To create a clean perimeter, a straight line is marked, and a circular saw with a guide is used to trim all the jagged ends perfectly straight. A decorative border, often consisting of one or more rows of standard straight-lay planks, is then installed around the entire perimeter to frame the herringbone field and complete the installation.

Even with careful planning, issues can arise during and after a flooring installation. A true professional is defined not only by the quality of their initial work but also by their ability to diagnose and correctly remedy problems. Most visible flooring problems are merely symptoms of a deeper, underlying issue, which is almost always rooted in a failure during the pre-installation or installation phase. The expert approach is to diagnose and treat the root cause, rather than simply patching the symptom.

The following table provides a diagnostic framework for common flooring issues.

Table 4: Comprehensive Troubleshooting Guide

Hardwood Issues

• Gapping and Shrinkage: This occurs when wood that was installed at a higher moisture content dries out and contracts, leaving spaces between the planks. This is a direct result of either insufficient acclimation or installation in an environment with excessively high humidity that later dries out. The immediate fix is to introduce a humidifier to raise the indoor relative humidity to the recommended 30-50% range, which may cause the gaps to close. For minor, persistent gaps, color-matched wood filler can be used, but this is a cosmetic fix. The long-term solution is maintaining stable year-round humidity.
• Buckling and Cupping: These issues are caused by excessive moisture gain. Buckling is an extreme reaction where the flooring expands so much that it lifts completely off the subfloor, often caused by a water leak or a complete lack of expansion gaps.¹¹⁸ Cupping is when the edges of a plank swell and rise higher than its center, typically caused by moisture coming from below (a damp subfloor or crawlspace). The absolute first step is to identify and eliminate the source of the moisture. Running dehumidifiers can help dry out the floor. It is a classic and costly mistake to sand a cupped floor flat while it is still swollen with moisture. When the floor eventually dries, the previously high edges will now be lower than the center, resulting in a "crowned" floor, which is often irreparable. The correct procedure is to fix the moisture problem, allow the floor to dry and stabilize (which can take weeks or months), and only then assess if it needs to be sanded flat and refinished.
• Squeaking: Noisy floors are typically caused by movement, either from an uneven subfloor, improper fastening that allows boards to rub against each other, or loose subfloor panels rubbing on joists. For isolated squeaks, repair kits are available that can inject lubricant or use small trim-head screws to secure the board. A more robust fix involves accessing the floor from below (if possible) and driving screws up through the subfloor into the hardwood, or adding blocking between joists to stiffen the subfloor.

Vinyl Plank Issues

• Gapping: Gaps between vinyl planks are most often due to the locking mechanism not being fully engaged during installation, or from thermal expansion and contraction if the planks were not acclimated to the room's temperature. A simple fix for a single gap is to use a piece of strong double-sided tape (like carpet tape) on a small block of wood. Adhere it to the face of the plank and use a rubber mallet to gently tap the block, sliding the plank and closing the gap. For more persistent gaps, a bead of color-matched 100% silicone caulk can be used, or a small amount of flooring adhesive can be injected into the gap before closing it.
• Peeling and Lifting: This primarily affects glue-down vinyl and occurs when the adhesive bond fails, often due to moisture or a subfloor that was not properly cleaned and primed before installation. The fix involves carefully lifting the affected plank, scraping the old adhesive off both the subfloor and the back of the plank, and re-applying a new, appropriate adhesive before pressing the plank firmly back in place and weighing it down.
• Buckling: Vinyl plank flooring can buckle or peak at the seams if it does not have adequate room to expand. This is almost always caused by not leaving the required 1/4-inch expansion gap around the perimeter, or by installing baseboards or quarter-round molding too tightly against the floor, which pinches it in place. The solution is to remove the baseboards and trim the edge of the flooring with a utility knife or oscillating multi-tool to create the necessary gap, allowing the floor to relax and lay flat.

Tile Issues

• Cracked Tile: While a heavy impact can crack a tile, a more common cause is structural movement. This can be from an underlying crack in the concrete slab transferring through, or more frequently, from excessive deflection (bounciness) in a wood subfloor. Installing tile directly onto a wood subfloor without a proper uncoupling membrane is a primary cause of cracked tile and grout.⁸³ The fix involves carefully chipping out the broken tile and surrounding grout, taking care not to damage adjacent tiles. New thin-set mortar is applied, and a replacement tile is set. However, if the underlying cause is subfloor flex, the problem will likely recur until the subfloor itself is reinforced.
• Loose Tile / Hollow Sound: A tile that sounds hollow when tapped indicates a void in the mortar underneath, meaning the tile is not fully bonded to the subfloor. This is a common result of "spot-bonding" or "dot and dabbing"—placing dabs of mortar on the corners and center of the tile instead of combing a full, even bed with a notched trowel. It can also be caused by a dusty, contaminated subfloor or by the mortar "skinning over" (drying too much) before the tile was set. The only proper fix is to remove the loose tile and grout, scrape all the old, cured mortar from the subfloor and the back of the tile, and re-install it with fresh mortar, ensuring 95%+ coverage.
• Grout Failure: Grout that is soft, crumbling, or has inconsistent color is usually the result of improper mixing (too much water), or improper cleaning (using too much water too soon after application, which washes out the cement and pigments). Movement in the tile joints can also cause grout to crack and fall out. The solution is to use a grout removal tool to carefully rake out the failed grout from the joints and then re-grout the area with a properly mixed batch, following correct cleaning procedures.

Appendix A: Comprehensive Flooring Terminology Glossary

This glossary defines key technical terms used throughout the flooring industry and this report, compiled from industry sources. Abrasion Class (AC Rating): A rating system (AC1 to AC5) used to measure the durability and abrasion resistance of laminate flooring. A higher rating indicates greater durability, with AC4 and AC5 being suitable for heavy residential or commercial traffic.

• Acclimation: The process of allowing flooring materials (especially wood and vinyl) to adjust to the temperature and humidity of the installation environment before they are installed. This is critical for preventing expansion and contraction issues post-installation.
• Adhesive: A chemical substance, or glue, used to bond flooring materials to the subfloor (in glue-down installations) or to each other at the seams (in T&G floating installations).
• Aluminum Oxide: A very hard mineral additive used in the top finish coats of prefinished hardwood and engineered wood flooring to increase scratch and abrasion resistance.
• Baseboard/Base Molding: A decorative trim installed along the bottom of a wall, covering the joint between the wall surface and the floor. It also covers the expansion gap required for many flooring types.
• Beveled Edge: A plank edge that is cut at a slight angle (typically 45 degrees). When two beveled planks meet, they form a "V" groove, which helps to define each individual plank and can hide minor subfloor irregularities.
• Blind Nailing: A technique for fastening tongue-and-groove flooring where the nail or cleat is driven at a 45-degree angle through the tongue of the plank. The fastener is then concealed by the groove of the next plank installed.
• Buckling: An extreme form of expansion where flooring lifts up from the subfloor, often in a wave-like shape. It is caused by excessive moisture or insufficient expansion gaps.
• Click-Lock: An installation system, common in floating floors (LVP, laminate, engineered wood), where planks have specially profiled edges that snap and lock together without the need for adhesive.
• Core: The central layer of an engineered or vinyl plank that provides its structure and stability. Common core types include HDF (High-Density Fiberboard), plywood, WPC (Wood Plastic Composite), and SPC (Stone Plastic Composite).
• Crowning: A type of wood floor distortion where the center of a plank is higher than its edges. It is the opposite of cupping and often occurs when a previously cupped floor is sanded flat while still containing excess moisture.
• Cupping: A type of wood floor distortion where the edges of a plank are higher than its center, forming a concave shape. It is caused by a moisture imbalance, where the bottom of the board is wetter than the top.
• Damp Proof Membrane (DPM): A material, typically a polyethylene sheet, laid over a subfloor (especially concrete) to prevent moisture from migrating upwards and damaging the flooring. Also known as a vapor barrier.
• Dimensional Stability: A material's ability to resist changes in its size (shrinking or swelling) due to fluctuations in temperature and humidity. Engineered wood and SPC vinyl have high dimensional stability.
• Embossed in Register (EIR): A manufacturing process for vinyl and laminate flooring where the surface texture (embossing) is aligned perfectly with the printed visual pattern underneath. This creates a highly realistic look and feel, mimicking the grain of real wood.
• Engineered Hardwood: A flooring product made of a real hardwood veneer attached to a core of multiple layers of plywood or HDF, stacked in a cross-grain configuration for stability.
• Equilibrium Moisture Content (EMC): The point at which wood's moisture content has stabilized and is in balance with the temperature and relative humidity of the surrounding air. Proper acclimation aims to bring wood flooring to the job site's EMC before installation.
• Expansion Gap: A space (typically 1/4" to 3/4") intentionally left around the perimeter of a room between the flooring and all walls and vertical obstructions. This gap allows the floor to expand and contract freely without buckling.
• Face Nailing: The practice of driving a nail straight down through the visible face of a floorboard. This is typically only done on the first and last rows where a blind nailer cannot be used.
• Floating Floor: An installation method where the flooring is not mechanically fastened or glued to the subfloor. The planks are connected to each other (via click-lock or glued seams) and "float" as a single large panel on top of an underlayment.
• Hygroscopic: The property of a material (like wood) to absorb and release moisture from the air.
• Janka Hardness Test: A standard test that measures the resistance of a wood species to denting and wear. It measures the force required to embed a 0.444-inch steel ball to half its diameter into the wood. The resulting Janka rating is a good indicator of a wood's durability.
• Lippage: A condition in tile installation where the edge of one tile is higher or lower than the adjacent tile, creating an uneven surface.
• Luxury Vinyl Plank/Tile (LVP/LVT): A high-quality vinyl flooring product designed to realistically mimic the appearance of natural materials like wood (LVP) or stone (LVT). It is constructed in multiple layers for durability and water resistance.
• Moisture Content (MC): The amount of water present in wood, expressed as a percentage of the wood's oven-dry weight. Measuring MC is critical for proper acclimation and installation.
• Parquet: A type of wood flooring made of small blocks or strips arranged in a geometric pattern, such as herringbone or chevron.
• Racking: The process of laying out planks from multiple cartons before installation to ensure a random distribution of lengths, colors, and grain patterns, and to properly stagger the end joints.
• Reducer: A molding strip used to create a smooth transition between two floors of different heights.
• Resilient Flooring: A category of flooring characterized by its ability to flex or "give" under impact and then return to its original shape. Vinyl, cork, and rubber are common resilient flooring types.
• SPC (Stone Plastic Composite): A type of rigid core for vinyl flooring made from a mixture of limestone powder, PVC, and stabilizers. It is known for being extremely dense, durable, and waterproof.
• Subfloor: The structural layer of the floor that lies directly on top of the floor joists. It is the foundation for the underlayment and finished flooring. Common materials are plywood, OSB, and concrete.
• T-Molding: A transition strip shaped like the letter 'T', used to join two hard-surface floors of the same height, typically in doorways or as a transition between rooms.
• Thinset Mortar: A cement-based adhesive used to bond tile to a substrate. It is mixed with water or a latex additive to form a paste.²⁶
• Tongue and Groove (T&G): A method of joining planks where one edge has a protruding ridge (the tongue) and the opposite edge has a corresponding slot (the groove). This creates a strong, interlocking connection.
• Underlayment: A thin layer of material (e.g., foam, cork, rubber, felt) placed between the subfloor and the finished flooring to provide benefits such as moisture protection, sound absorption, or cushioning.
• Vapor Barrier/Retarder: An impermeable material, usually a plastic sheet, used to prevent moisture vapor from passing through a surface, most commonly from a concrete slab into the flooring system.
• Veneer: A thin layer of real hardwood used as the top surface of an engineered wood plank.
• Wear Layer: The top, protective coating on a vinyl or laminate floor. Its thickness, typically measured in mils (thousandths of an inch), is a primary indicator of the floor's durability and resistance to scratches and scuffs.
• WPC (Wood Plastic Composite): A type of rigid core for vinyl flooring made from a blend of recycled wood pulp and plastic. It is generally softer and quieter underfoot than SPC.

Appendix B: Master Tool and Material Checklists

This appendix provides comprehensive checklists of tools and materials required for various flooring installation projects, compiled from multiple professional and manufacturer guides.

Checklist 1: Nail-Down / Staple-Down Hardwood Installation

Power Tools:

• Pneumatic Flooring Nailer (for cleats) or Stapler (for staples)
• Air Compressor and Air Hose
• Miter Saw (Chop Saw)
• Table Saw or Circular Saw
• Jigsaw (for intricate cuts)
• Drill/Driver and Drill Bits (for pre-drilling)
• Shop Vacuum

Hand Tools:

• Tape Measure
• Chalk Line and Chalk
• Pry Bar
• Claw Hammer
• Rubber Mallet (non-marring) and Tapping Block
• Pull Bar
• Nail Set/Nail Punch
• Utility Knife
• Straightedge or Carpenter's Square
• Moisture Meter (for wood)

Materials & Consumables:

• Hardwood Flooring
• Flooring Cleats (16-18 gauge) or Staples (18-20 gauge) of appropriate length
• Finishing Nails (for face-nailing)
• Underlayment (15lb Asphalt Felt or Rosin Paper)
• 3/4-inch Spacers
• Color-Matched Wood Putty/Filler
• Floor Moldings and Transitions

Safety Gear:

• Safety Glasses
• Hearing Protection (Ear Plugs/Muffs)
• Dust Mask (especially when cutting)
• Knee Pads
• Work Gloves

Checklist 2: Glue-Down Engineered Wood / LVP Installation

Power Tools:

• Miter Saw / Table Saw / Circular Saw
• Jigsaw
• Shop Vacuum

Hand Tools:

• Tape Measure
• Chalk Line and Chalk
• Notched Trowel (size specified by adhesive manufacturer)
• Pry Bar
• Rubber Mallet and Tapping Block
• Pull Bar
• Utility Knife or Vinyl Cutter
• Straightedge or Carpenter's Square
• 100-lb Floor Roller
• Moisture Meter (for concrete and/or wood)

Materials & Consumables:

• Engineered Wood or LVP Flooring
• Manufacturer-Recommended Flooring Adhesive
• 1/4-inch Spacers
• Painter's Tape
• Adhesive Remover/Cleaning Wipes
• Floor Moldings and Transitions
• Leveling Compound (if needed)

Safety Gear:

• Safety Glasses
• Cleaning Gloves (for adhesive)
• Knee Pads
• Dust Mask / Respirator (if sanding or grinding subfloor)

Checklist 3: Floating Engineered Wood / LVP Installation

Power Tools:

• Miter Saw / Table Saw / Circular Saw
• Jigsaw
• Shop Vacuum

Hand Tools:

• Tape Measure
• Chalk Line and Chalk
• Pry Bar
• Rubber Mallet and Tapping Block
• Pull Bar
• Utility Knife
• Straightedge or Carpenter's Square

Materials & Consumables:

• Engineered Wood or LVP Flooring
• Underlayment Pad (Foam or Cork)
• 6-mil Polyethylene Vapor Barrier (for concrete subfloors)
• Seam Tape for Underlayment (e.g., Duct Tape)
• 1/4-inch Spacers
• Wood Glue (for T&G floating systems)
• Floor Moldings and Transitions

Safety Gear:

• Safety Glasses
• Dust Mask
• Knee Pads
• Work Gloves

Checklist 4: Ceramic / Porcelain Tile Installation

Power Tools:

• Wet Tile Saw with Diamond Blade (essential for porcelain and complex cuts)
• Angle Grinder with Diamond Blade (for curves and notches)
• Drill/Driver with Mixing Paddle/Arm
• Shop Vacuum

Hand Tools:

• Tape Measure
• Chalk Line and Chalk
• Levels (2-foot and 4-foot)
• Notched Trowel (size appropriate for tile)
• Rubber Grout Float
• Margin Trowel
• Tile Nippers
• Manual Tile Cutter (Snap Cutter) (for ceramic)
• Large Buckets (for mixing and water)
• Large Sponges (for grout cleanup)
• Utility Knife
• Tile Leveling System (Clips and Wedges)

Materials & Consumables:

• Tile (Ceramic or Porcelain)
• Thinset Mortar (Modified or Unmodified, as required)
• Grout (Sanded or Unsanded, as required)
• Tile Spacers
• Substrate/Underlayment (Cement Backer Board or Uncoupling Membrane)
• Backer Board Screws or Roofing Nails
• Fiberglass Mesh Tape (for backer board seams)
• Silicone Caulk (for perimeter and change-of-plane joints)
• Grout Sealer
• Grout Haze Remover

Safety Gear:

• Safety Glasses
• Waterproof / Cleaning Gloves
• Knee Pads
• NIOSH-Approved Respirator / Dust Mask (critical when cutting tile or mixing mortar/grout)

Appendix C: OSHA Safety Standards for Flooring Installation

All flooring installation activities fall under the purview of the Occupational Safety and Health Administration (OSHA) and must comply with regulations designed to protect worker health and safety. The following is a summary of key standards relevant to flooring professionals.

General Worksite Safety: Walking-Working Surfaces (1910.22 / 1926 Subpart D)

These standards are foundational to maintaining a safe work environment. The employer is responsible for ensuring that all work areas, including passageways and storerooms, are kept in a clean, orderly, and sanitary condition.

• Hazard-Free Surfaces: Floors and walking surfaces must be maintained free of hazards such as sharp or protruding objects (e.g., exposed nails, fasteners), loose boards, spills, and debris.
• Dry Conditions: Floors must be kept as dry as is feasible. In areas where wet processes are used (e.g., tile cutting with a wet saw, concrete grinding with water), proper drainage must be maintained, and dry standing places like mats or platforms should be provided.
• Structural Integrity: All walking-working surfaces must be capable of supporting the maximum intended load, including workers, tools, and materials. Any repair that affects the structural integrity of a subfloor must be performed or supervised by a qualified person.
• Inspection and Correction: Surfaces must be regularly inspected. Any hazardous conditions must be corrected immediately or cordoned off to prevent access until repaired.

Personal Protective Equipment (PPE) (1926 Subpart E)

Employers must provide, and ensure employees use, appropriate PPE for the tasks being performed. For flooring installation, this includes:

• Eye and Face Protection (1926.102): Safety glasses or goggles are required during activities that can generate flying particles, such as cutting wood or tile, nailing, or chipping old materials.
• Head Protection (1926.100): Hard hats may be required on active construction sites where there is a risk of falling objects.
• Foot Protection (1926.96): Safety-toed work boots are recommended to protect against falling materials and puncture wounds from fasteners.
• Hearing Protection (1926.101): Ear plugs or muffs are required when operating loud power tools like miter saws, circular saws, and air compressors for extended periods, as noise levels can exceed the 85-decibel action level.
• Respiratory Protection (1926.103): A NIOSH-approved respirator or dust mask is critical when performing tasks that generate airborne dust, particularly silica dust from cutting or grinding concrete and tile, or fine wood dust. Proper fit and filter type are essential.

Fall Protection (1926 Subpart M)

When work is performed at a height of 6 feet or more above a lower level (e.g., installing flooring on an upper story before walls are up, or working near open stairwells or balconies), employers must provide a fall protection system.

• Systems: Common systems include guardrail systems, safety net systems, or personal fall arrest systems (PFAS).
• Personal Fall Arrest System (PFAS): A PFAS consists of an anchorage point, a full-body harness, and a connector like a lanyard or lifeline. The anchorage must be capable of supporting at least 5,000 pounds per worker or be designed with a safety factor of at least two under the supervision of a qualified person.
• Fall Restraint: A fall restraint system, which tethers a worker to an anchorage to prevent them from reaching a fall hazard in the first place, is also an acceptable alternative.

Electrical Safety (1926 Subpart K)

Installers frequently use power tools and may work around existing electrical systems.

• Equipment: All electrical equipment must be suitable for the installation environment and free from damage. Cords should be inspected for frays or damage.
• Working Clearances: Adequate working clearance must be maintained around electrical panels and live parts. For voltages from 0-150V, a minimum clear distance of 3 feet is required.
• Grounding: All tools and equipment must be properly grounded to prevent electrical shock.

Enforcement and Penalties

OSHA conducts both scheduled and surprise inspections and investigates employee complaints. Violations can result in significant penalties.

• Citations: Violations can range from simple warnings for minor issues to immediate fines for clear and serious risks of injury or death.
• Penalty Amounts: As of recent OSHA briefs, serious violations can range up to $13,260 per citation. Willful or repeated violations can incur penalties up to $132,598. A violation resulting in an employee's death can lead to both fines and criminal charges, including prison time.

Compliance with these safety standards is not only a legal requirement but is also fundamental to professional conduct and ensuring the well-being of every person on the job site.

Conclusion

The successful installation of flooring is a complex discipline that demands a synthesis of material science, environmental assessment, and procedural precision. This report has established that a truly expert understanding transcends mere knowledge of "how" to lay a floor; it is rooted in a deep comprehension of "why" each step is performed.

The analysis reveals several core principles that govern professional flooring work. First, the choice of flooring material is not an independent decision but part of a system that includes the subfloor, the installation environment, and the intended use. The inherent properties of each material—the hygroscopic nature of wood, the waterproof composition of vinyl, the brittle rigidity of tile—dictate their suitability for a given application. The failure to match the material to the environment is a primary source of flooring failure.

Second, the pre-installation phase is unequivocally the most critical stage of any flooring project. The meticulous processes of subfloor preparation, moisture testing, and material acclimation are not optional preliminaries but are the very foundation upon which a durable and long-lasting floor is built. The data-driven standards set by organizations like the NWFA provide a clear blueprint for mitigating the most common risks of failure, namely those related to moisture and dimensional instability.

Third, the installation method itself is a prescribed system, not an arbitrary choice. The selection of a nail-down, glue-down, or floating method is determined by the product's construction and the subfloor's composition. Similarly, advanced applications such as soundproofing, stair work, and patterned layouts are not simply more difficult tasks but are distinct systems requiring specialized materials and techniques, such as acoustic decoupling and perimeter isolation.

Finally, troubleshooting flooring issues requires a diagnostic approach. Visible problems like gapping, buckling, or cracking are symptoms of an underlying root cause, which can almost always be traced back to a deviation from established best practices during the pre-installation or installation phases. An expert response involves identifying and rectifying this root cause, rather than applying a purely cosmetic fix to the symptom.

In conclusion, mastery in the field of flooring installation is achieved through a holistic understanding of the entire flooring assembly as an integrated system. By adhering to industry standards, respecting the properties of the materials, and executing each stage of the process with precision, a flooring professional can ensure an outcome that is not only aesthetically pleasing but also structurally sound and durable for years to come. This comprehensive body of knowledge forms the necessary foundation for training an artificial intelligence to serve as a reliable and expert resource in this trade.
